Product

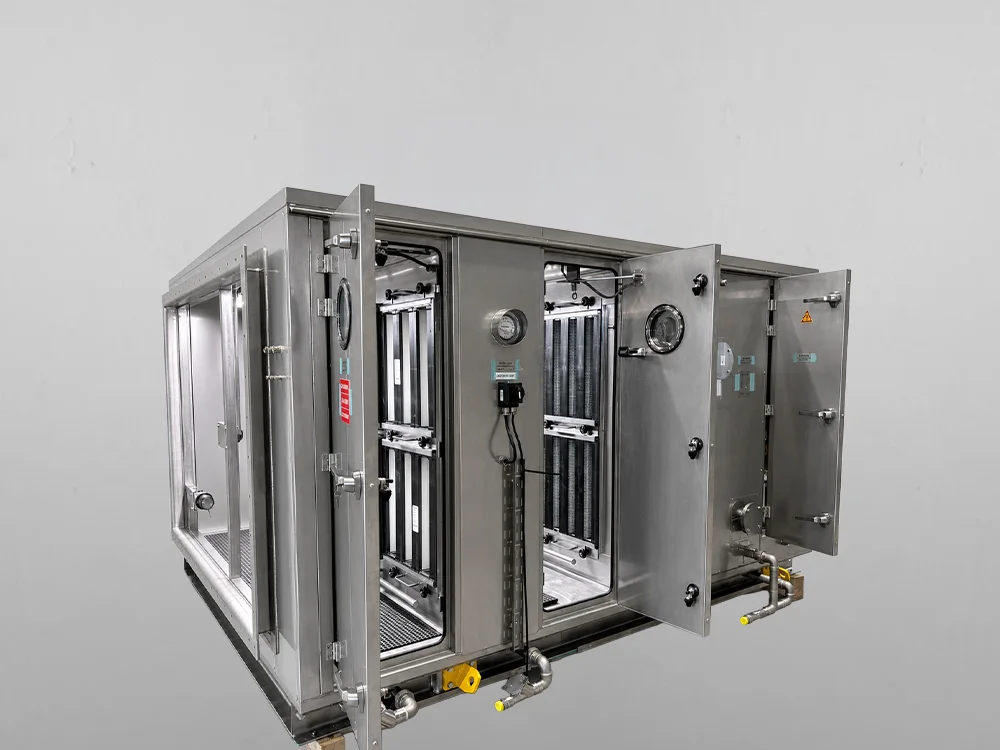

Fully welded Customised Air Handling Unit - External Installation

Offshore

Watertight outdoor unit for installation in exposed environments. The unit will be manufactured with fully welded framework and panels. The inner and outer walls, including the base frame and welded profiles, are made of stainless steel AISI 316L. Insulation between the inner and outer walls is made of mineral wool. Normally leakage class L2 or acc. to project requirements, EN 1886. Base frame is made from AISI 316L U-profile with thickness adapted to design load requirements. The door panels are welded in the corner edges and secured against water ingress by use of gaskets. The overall unit includes certified lifting lugs enabling the skid to be lifted as a single lift.

teknotherm_product_fully_welded_air_handling_unit

Key Features

Robust customised design for Harsh Environment and clients’ specific requirements
Stainless Steel, fully welded construction
Possibility of stacking with 2x100% units
Delivered with fit for purpose sections for filtering, cooling, heating, etc. as required. Easy access for maintenance.
Accessories like dampers, VSDs, internal light, vibration monitoring, instrumentation, etc. as required acc. to project specifications.
Standard factory test or full performance/noise test available
